Attribute Nodes

Attribute nodes read and write per-point data — both built-in point properties (Density, Position, Rotation, Scale, Color, Steepness, Seed) and arbitrary named metadata attributes. All nodes in this category use the green node color (#80B24D).

---

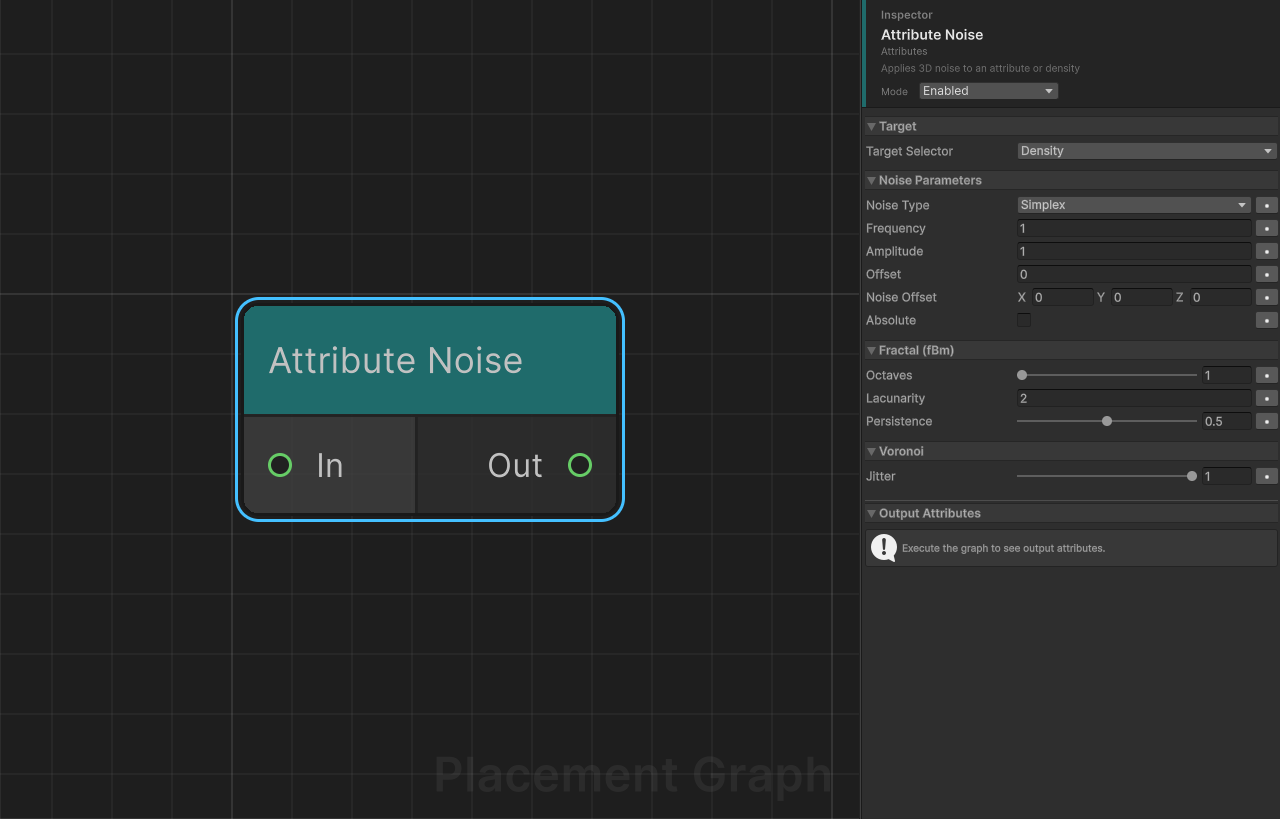

Attribute Noise

Category: Attributes
Description: Applies 3D noise to an attribute or density.
Seed-sensitive: Yes

Samples a procedural noise function at each point's world position and writes the result to a chosen attribute. Supports fractal layering (fBm) via octave stacking.

Ports

Direction	Name	Type
Input	In	Point
Output	Out	Point

Settings

Target

Field	Type	Default	Description
targetSelector	PPGAttributeSelector	Density	Attribute to write the noise result to. Accepts built-in properties or a custom attribute name.

Noise Parameters

Field	Type	Default	Description
noiseType	PPGNoiseType	Simplex	Noise algorithm. Options: Simplex, Perlin, VoronoiF1, VoronoiF2, VoronoiEdge.
frequency	float	1.0	Spatial frequency of the noise field.
amplitude	float	1.0	Multiplier applied to the final noise value.
offset	float	0.0	Constant bias added to the noise result after amplitude scaling.
noiseOffset	Vector3	(0, 0, 0)	World-space translation applied to the sampling position before lookup.
absolute	bool	false	If enabled, takes the absolute value of the noise result (abs(n)).

Fractal (fBm)

Field	Type	Range	Default	Description
octaves	int	1 – 8	1	Number of noise layers. 1 = no fractal; higher values add fine detail.
lacunarity	float	—	2.0	Frequency multiplier between successive octaves.
persistence	float	0 – 1	0.5	Amplitude multiplier between successive octaves. Values below 1 reduce contribution of higher octaves.

Voronoi

Field	Type	Range	Default	Description
jitter	float	0 – 1	1.0	Cell randomness. 0 produces a regular grid; 1 fully randomises cell positions. Only affects Voronoi noise types.

Provided Attributes

When targetSelector points to a custom attribute, the node declares it as a Float attribute via IPPGAttributeProvider.

Tips

• The node is executed using the Unity Job System (IPPGJobElement). Up to 64 points are scheduled per batch for efficient parallel processing.
• When writing to the built-in Density property, the job writes directly into PPGPoint.density on the worker thread. For custom attributes the value is written on the main thread after job completion.
• Combining Simplex noise with octaves = 4, lacunarity = 2, and persistence = 0.5 produces classic fBm terrain-style variation.

---

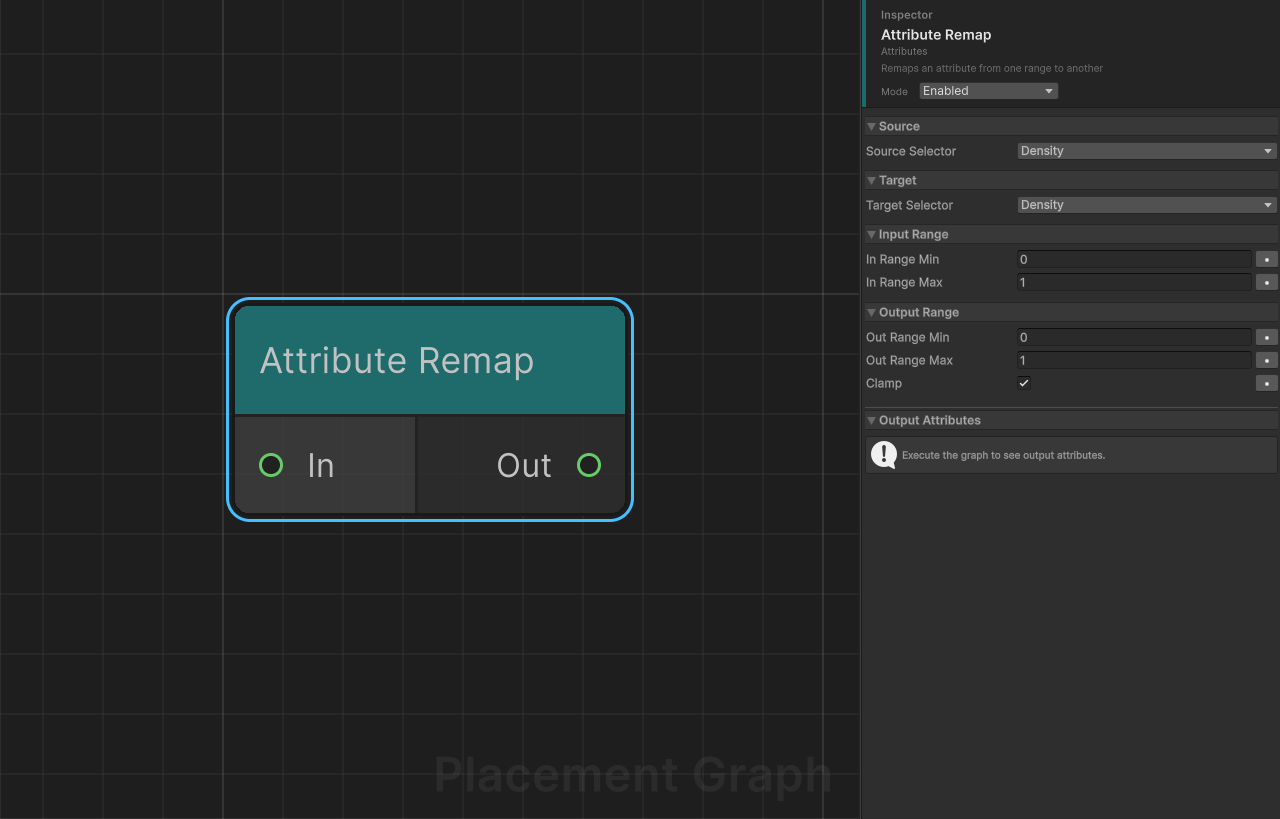

Attribute Remap

Category: Attributes
Description: Remaps an attribute value from one numeric range to another.

Reads a float value from sourceSelector, linearly remaps it from [inRangeMin, inRangeMax] to [outRangeMin, outRangeMax], and writes the result to targetSelector. The source and target can be the same attribute for in-place remapping.

Ports

Direction	Name	Type
Input	In	Point
Output	Out	Point

Settings

Source

Field	Type	Default	Description
sourceSelector	PPGAttributeSelector	Density	Attribute to read the source value from.

Target

Field	Type	Default	Description
targetSelector	PPGAttributeSelector	Density	Attribute to write the remapped result to (Write mode selector).

Input Range

Field	Type	Default	Description
inRangeMin	float	0.0	Minimum of the expected input range.
inRangeMax	float	1.0	Maximum of the expected input range.

Output Range

Field	Type	Default	Description
outRangeMin	float	0.0	Minimum of the target output range.
outRangeMax	float	1.0	Maximum of the target output range.
clamp	bool	true	When enabled, clamps the result to [min(outRangeMin, outRangeMax), max(outRangeMin, outRangeMax)]. Handles inverted ranges correctly.

Provided / Consumed Attributes

• Provides: If targetSelector is a custom attribute, declares it as Float (IPPGAttributeProvider).
• Consumes: If sourceSelector is a custom attribute, declares it as consumed (IPPGAttributeConsumer).

Tips

• Setting outRangeMin > outRangeMax inverts the value. The clamp step handles the reversed bounds automatically.
• Source and target selectors may reference the same attribute for an in-place remap.
• If inRangeMin == inRangeMax the node outputs 0 to avoid a division-by-zero.

---

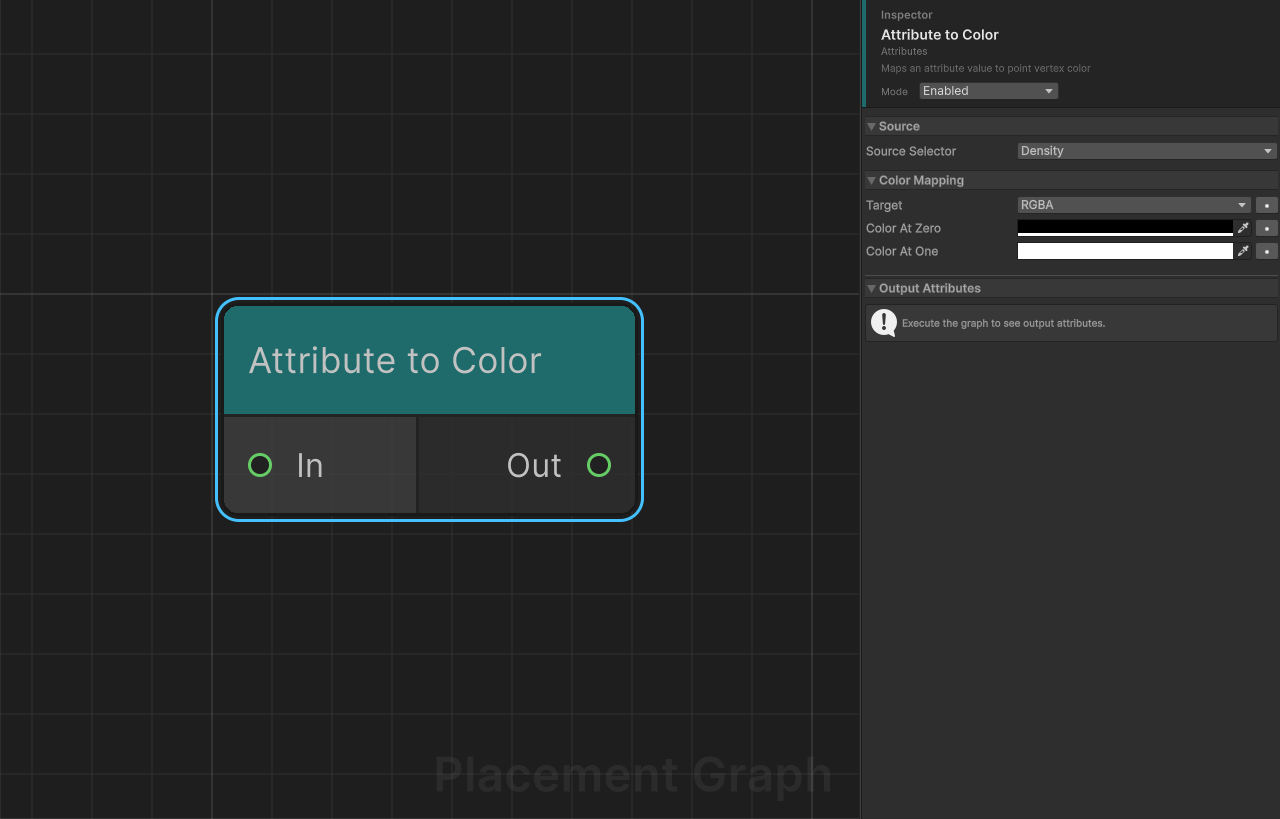

Attribute to Color

Category: Attributes
Description: Maps an attribute value to the point's vertex color.

Reads a float value from sourceSelector (clamped to [0, 1]) and writes it to the point's color field. Useful for driving vertex colors on GPU instanced meshes or for passing data to MaterialPropertyBlock overrides via instancer nodes.

Ports

Direction	Name	Type
Input	In	Point
Output	Out	Point

Settings

Source

Field	Type	Default	Description
sourceSelector	PPGAttributeSelector	Density	Attribute supplying the [0, 1] driving value.

Color Mapping

Field	Type	Default	Description
target	ColorTarget	RGBA	Which channel(s) to write. See table below.
colorAtZero	Color	Color.black	Full RGBA color written when the attribute equals 0. Used only in RGBA mode.
colorAtOne	Color	Color.white	Full RGBA color written when the attribute equals 1. Used only in RGBA mode.

ColorTarget enum

Value	Behaviour
RGBA	Lerps from colorAtZero to colorAtOne and writes all four channels.
R	Writes the attribute value directly to the R channel only.
G	Writes to the G channel only.
B	Writes to the B channel only.
A	Writes to the A channel only.

Consumed Attributes

If sourceSelector is a custom attribute, declares it as consumed (IPPGAttributeConsumer).

Tips

• In single-channel modes (R/G/B/A) the colorAtZero and colorAtOne fields are ignored; the raw attribute value is written as-is.
• The color is clamped to [0, 1] via math.saturate before any mapping.
• Point colors can be picked up by the Prefab Instancer or Weighted Instancer nodes through PPGMaterialPropertyMapping to drive shader parameters per instance.

---

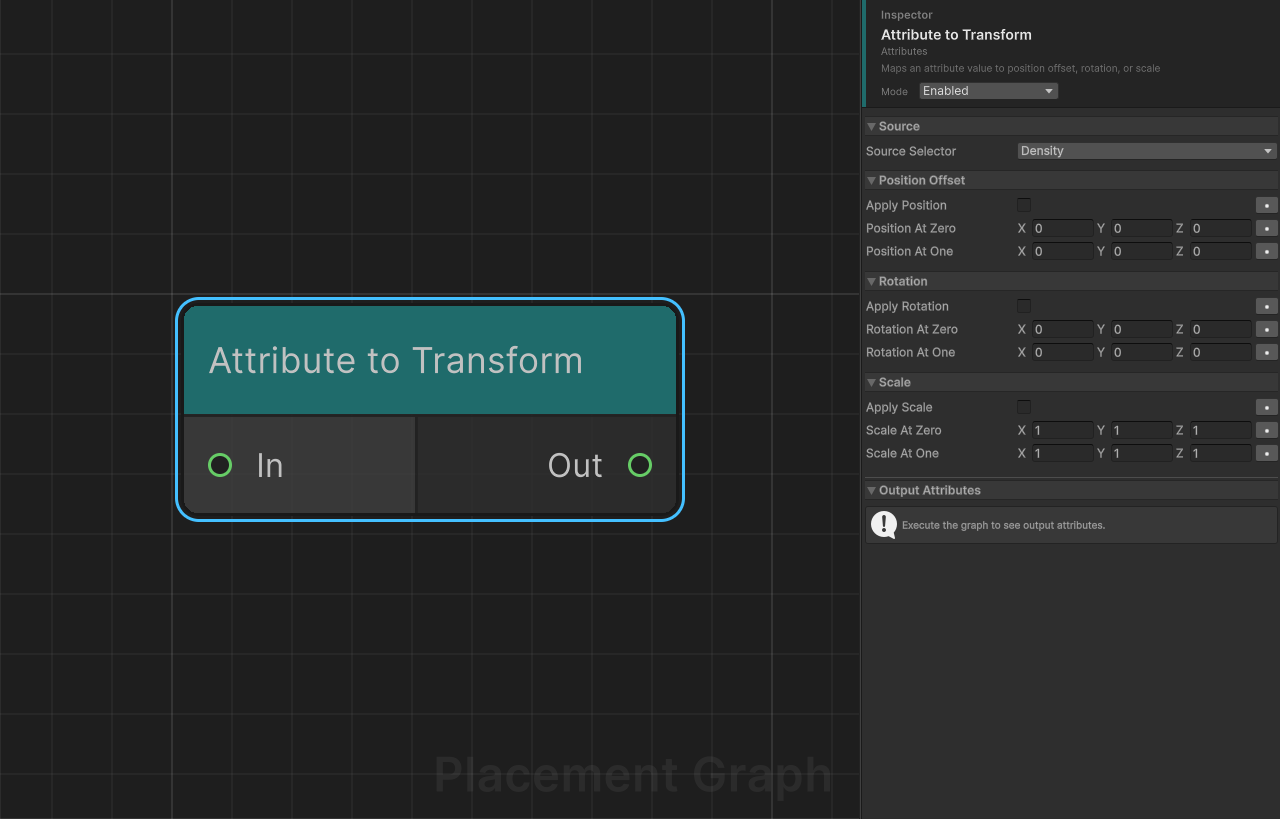

Attribute to Transform

Category: Attributes
Description: Maps an attribute value to position offset, rotation, or scale.

Reads a float value from sourceSelector (clamped to [0, 1]) and linearly interpolates transform components between an "at zero" and "at one" value, multiplying the result into each point's transform matrix.

Ports

Direction	Name	Type
Input	In	Point
Output	Out	Point

Settings

Source

Field	Type	Default	Description
sourceSelector	PPGAttributeSelector	Density	Attribute that drives the interpolation t.

Position Offset

Field	Type	Default	Description
applyPosition	bool	false	Enable position offset driven by the attribute.
positionAtZero	Vector3	(0, 0, 0)	Local position offset when the attribute equals 0.
positionAtOne	Vector3	(0, 0, 0)	Local position offset when the attribute equals 1.

Rotation

Field	Type	Default	Description
applyRotation	bool	false	Enable rotation driven by the attribute.
rotationAtZero	Vector3	(0, 0, 0)	Euler rotation in degrees applied when the attribute equals 0.
rotationAtOne	Vector3	(0, 0, 0)	Euler rotation in degrees applied when the attribute equals 1.

Scale

Field	Type	Default	Description
applyScale	bool	false	Enable scale driven by the attribute.
scaleAtZero	Vector3	(1, 1, 1)	Scale multiplier applied when the attribute equals 0.
scaleAtOne	Vector3	(1, 1, 1)	Scale multiplier applied when the attribute equals 1.

Consumed Attributes

If sourceSelector is a custom attribute, declares it as consumed (IPPGAttributeConsumer).

Tips

• Transforms are applied in the order: position → rotation → scale, each multiplied into the point's existing float4x4 transform matrix using math.mul.
• Rotation is converted from Euler degrees (ZXY order) to a quaternion internally.
• Only the enabled channels are processed; disabling all three makes the node a passthrough.
• Useful for attribute-driven height offsets, random lean angles, or density-scaled vegetation.

---

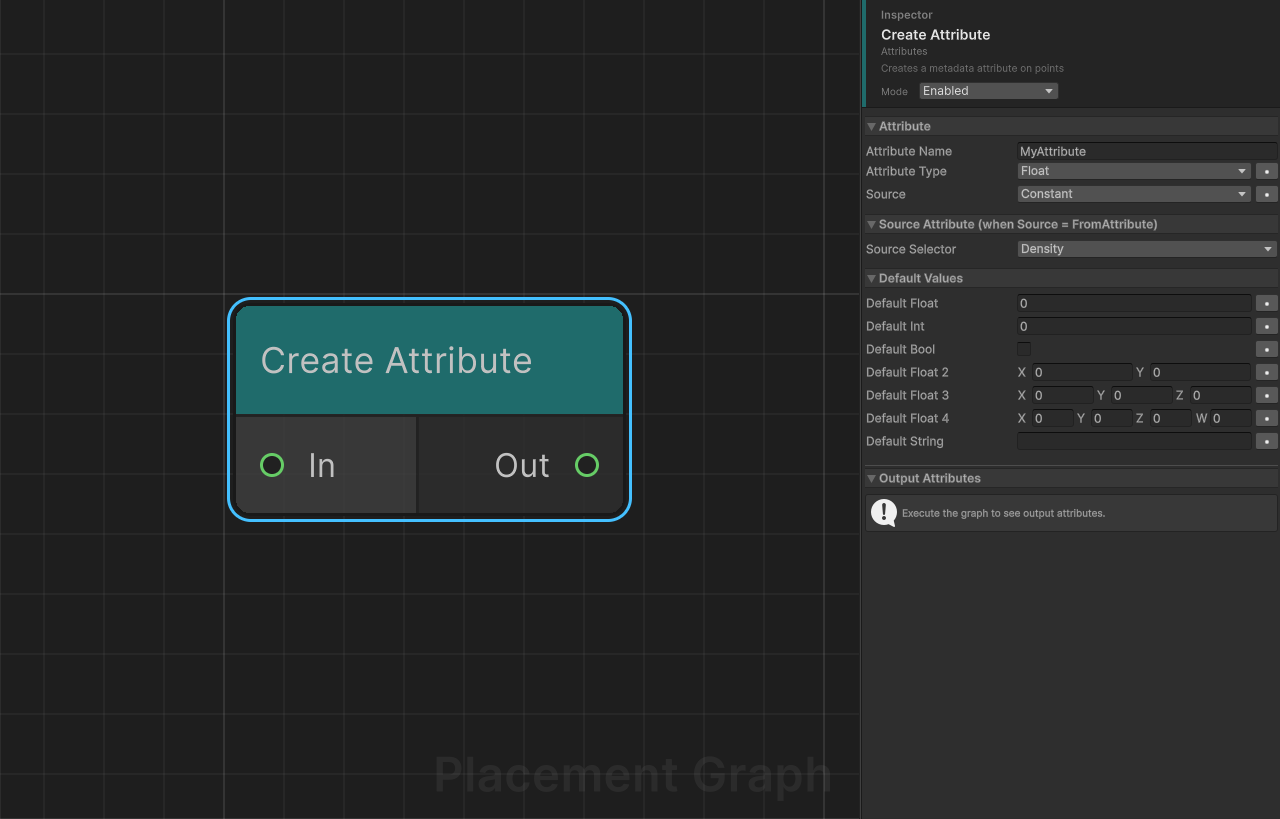

Create Attribute

Category: Attributes
Description: Creates a named metadata attribute on points and populates it with a constant, a random value, or the value of another attribute.

Ports

Direction	Name	Type
Input	In	Point
Output	Out	Point

Settings

Attribute

Field	Type	Default	Description
attributeName	string	"MyAttribute"	Name of the attribute to create. Must not be empty. Built-in property names (e.g. "Density") are also accepted and write directly to the corresponding PPGPoint field.
attributeType	PPGAttributeType	Float	Data type for the new attribute. See type table below.
source	SourceMode	Constant	How the value is determined: Constant, FromAttribute, or Random.

Supported Attribute Types

PPGAttributeType	C# type / components
Float	float
Int	int
Bool	bool
Float2	float2 (2 components)
Float3	float3 (3 components)
Float4	float4 (4 components)
Quaternion	quaternion (defaults to identity)
String	string

Source: FromAttribute

Field	Type	Default	Description
sourceSelector	PPGAttributeSelector	Density	Attribute to copy the value from. Only the scalar (float) component is read; multi-component types use the first component.

Default Values (used when Source = Constant)

Field	Type	Default	Used for type
defaultFloat	float	0	Float
defaultInt	int	0	Int
defaultBool	bool	false	Bool
defaultFloat2	Vector2	(0,0)	Float2
defaultFloat3	Vector3	(0,0,0)	Float3
defaultFloat4	Vector4	(0,0,0,0)	Float4
defaultString	string	""	String

Quaternion type always defaults to quaternion.identity regardless of the default value fields.

Provided / Consumed Attributes

• Provides: The new attribute (with its declared type) if the name does not match any built-in property (IPPGAttributeProvider).
• Consumes: If source = FromAttribute and sourceSelector is a custom attribute (IPPGAttributeConsumer).

SourceMode enum

Value	Behaviour
Constant	Writes the corresponding defaultXxx field value to every point.
FromAttribute	Reads a float from sourceSelector and writes it to the new attribute.
Random	Generates a deterministic random value per point using WangHash(point.seed) ^ WangHash(contextSeed + pointIndex).

Tips

• If attributeName matches a built-in property (e.g. "Position", "Rotation", "Color") the value is written directly to the PPGPoint struct fields instead of the metadata store.
• Rotation writes via Euler angles (3 components). The Float3 default value fields are used for built-in Rotation.
• Random mode is seed-stable: the same seed + point layout always produces the same values.

---

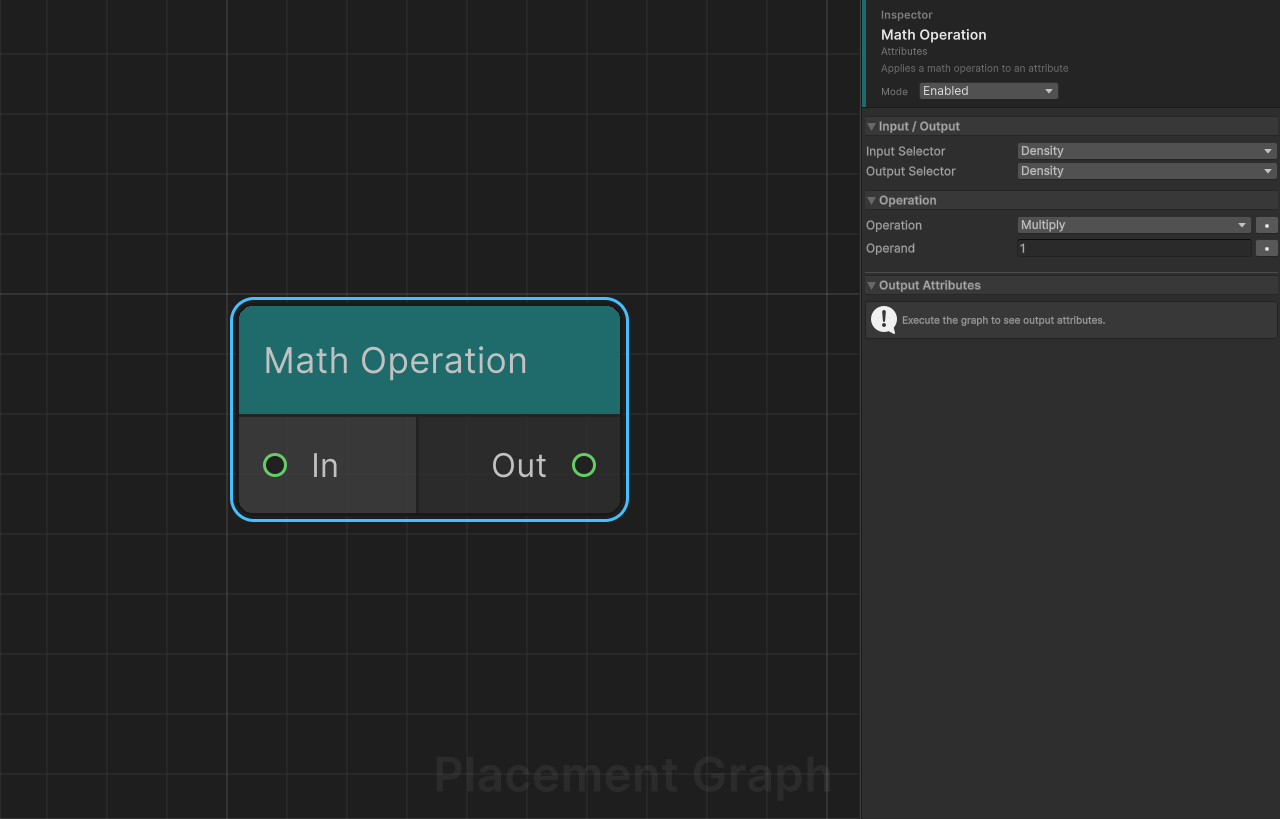

Math Operation

Category: Attributes
Description: Applies a single math function to an attribute value, optionally using a constant operand, and writes the result to an output attribute.

Ports

Direction	Name	Type
Input	In	Point
Output	Out	Point

Settings

Input / Output

Field	Type	Default	Description
inputSelector	PPGAttributeSelector	Density	Attribute to read the input value from.
outputSelector	PPGAttributeSelector	Density	Attribute to write the result to (Write mode selector).

Operation

Field	Type	Default	Description
operation	MathOp	Multiply	The mathematical function to apply. See operation table below.
operand	float	1.0	Right-hand operand for binary operations. Ignored by unary operations.

Available Operations

Operation	Formula / Description	Uses Operand
Add	value + operand	Yes
Subtract	value - operand	Yes
Multiply	value * operand	Yes
Divide	value / operand (returns 0 when operand is 0)	Yes
Power	pow(value, operand)	Yes
Min	min(value, operand)	Yes
Max	max(value, operand)	Yes
Abs	abs(value)	No
Floor	floor(value)	No
Ceil	ceil(value)	No
Round	round(value)	No
OneMinus	1 - value	No
Sqrt	sqrt(abs(value))	No
Modulo	value % operand (returns 0 when operand is 0)	Yes
Frac	Fractional part of value	No
Sign	-1, 0, or 1 depending on sign of value	No
Lerp	lerp(0, operand, value)	Yes
InverseLerp	saturate(value / operand) (returns 0 when operand is 0)	Yes
Smoothstep	smoothstep(0, operand, value)	Yes
Remap01	saturate(value / operand) (same as InverseLerp)	Yes
Length	Vector magnitude of multi-component attribute; abs(value) for scalar	No
LengthSq	Squared vector magnitude; value * value for scalar	No
Negate	-value	No
Saturate	clamp(value, 0, 1)	No
Log	Natural log (clamped to EPSILON)	No
Log2	Base-2 log (clamped to EPSILON)	No
Log10	Base-10 log (clamped to EPSILON)	No
Exp	e^value	No
Exp2	2^value	No

Provided / Consumed Attributes

• Provides: If outputSelector is a custom attribute, declares it as Float (IPPGAttributeProvider).
• Consumes: If inputSelector is a custom attribute, declares it as consumed (IPPGAttributeConsumer).

Tips

• Length and LengthSq automatically read the full vector when inputSelector targets a multi-component attribute (Float2/Float3/Float4) without a component sub-index.
• The output selector may be the same as the input selector for in-place modification.
• Divide and Modulo silently return 0 instead of throwing on division by zero.
