Sampler Nodes

Sampler nodes either generate new point sets by reading external data sources (terrain heightmaps, meshes, textures) or annotate an existing point set with sampled values. They are found in the Samplers category of the node picker.

Unlike the pure generator nodes, most sampler nodes interact with Unity scene objects (Terrain, Colliders, Mesh assets, Texture2D). Refer to each node's Notes section for any asset import requirements.

---

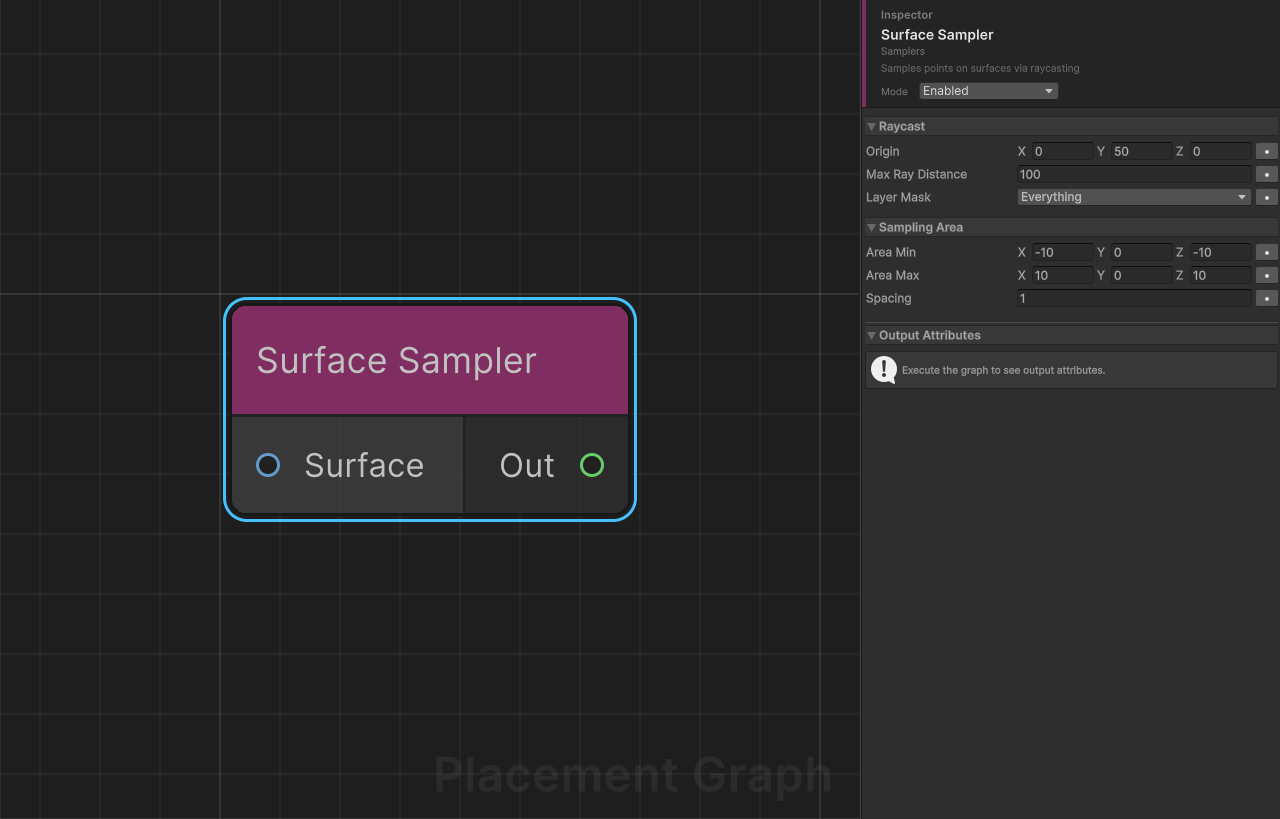

Surface Sampler

Display name: Surface Sampler
Category: Samplers
Description: Generates points on physical surfaces by casting rays downward from a uniform XZ grid. Hits are recorded as output points with normals and steepness data.

Ports

Direction	Name	Type	Required
Input	Surface	Surface	No
Output	Out	Point	—

Settings

Field	Type	Default	Description
origin	Vector3	(0, 50, 0)	Ray start position. Only the Y component is used as the vertical ray origin height; the X and Z of each ray origin come from the sampling grid.
maxRayDistance	float	100.0	Maximum distance a ray travels before being discarded.
layerMask	LayerMask	Everything (~0)	Physics layers the raycast can hit.
areaMin	Vector3	(-10, 0, -10)	Minimum XZ corner of the sampling grid, in local space relative to the PPG component.
areaMax	Vector3	(10, 0, 10)	Maximum XZ corner of the sampling grid, in local space relative to the PPG component.
spacing	float	1.0	Distance between adjacent ray origins in the grid. Minimum enforced: 0.01.

Output Point Attributes

Each successfully hit point has the following data written automatically:

Attribute	Value
density	1.0 (always)
transform	Rotation aligned to the hit surface normal (up = hit.normal).
steepness	1 − dot(normal, Vector3.up). Flat horizontal surfaces → 0; vertical walls → 1.

Notes

• When the Surface port is connected, only colliders from the connected PPGSurfaceData are hit. The layerMask acts as an additional filter on top.
• When Surface is disconnected, raycasts hit any collider matching layerMask.
• areaMin/areaMax are in the PPG component's local space; the node converts them to world space using the component transform before raycasting.
• In Edit Mode, Physics.SyncTransforms() is called automatically so collider positions are current even without entering Play Mode.
• Grid resolution = (areaMax - areaMin) / spacing + 1 per axis. Keep spacing reasonable to avoid excessive raycast counts in large areas.

---

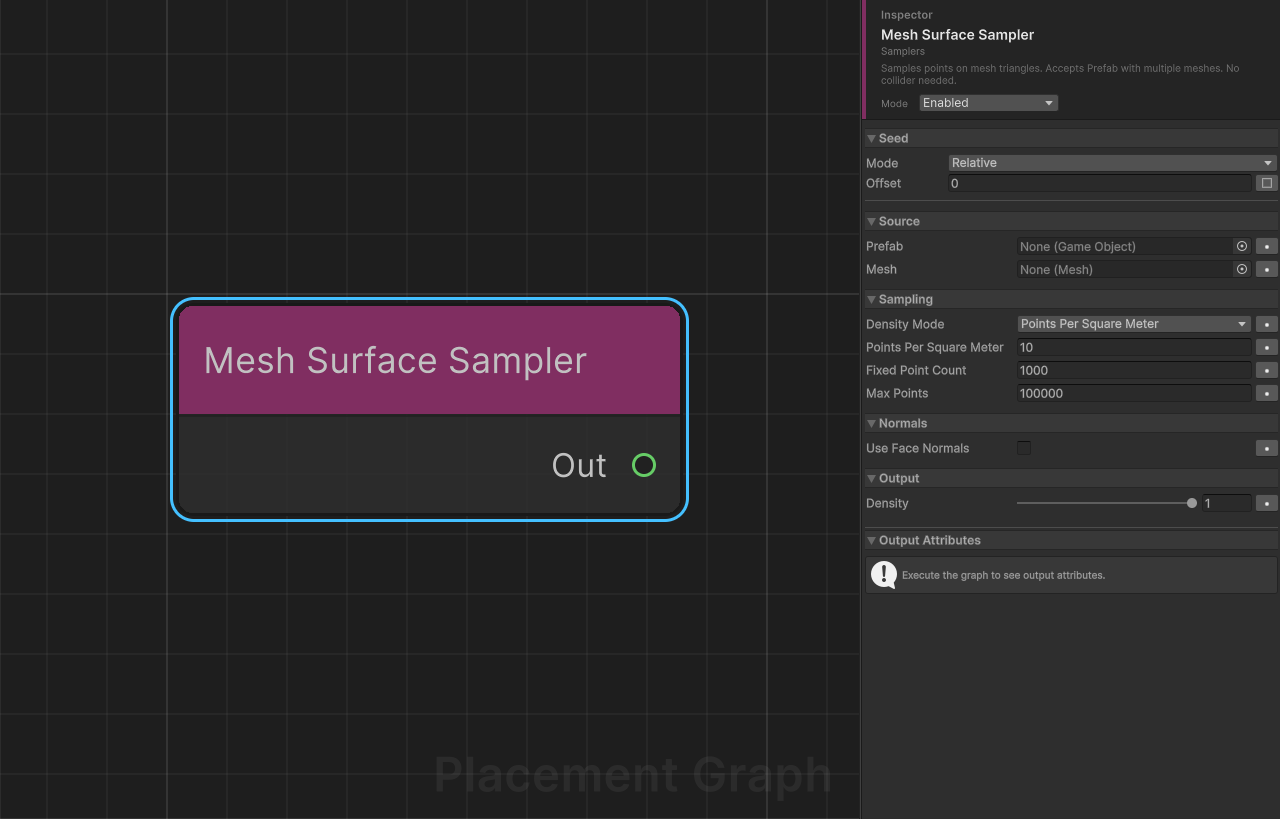

Mesh Surface Sampler

Display name: Mesh Surface Sampler
Category: Samplers
Description: Samples points directly on mesh triangle surfaces using area-weighted random distribution. Accepts a Prefab or a single Mesh asset. No colliders or raycasting needed — works with any mesh topology.

Ports

Direction	Name	Type	Required
Output	Out	Point	—

Settings

Source

Field	Type	Default	Description
prefab	GameObject	None	Prefab or scene GameObject to sample. All MeshFilter components in the hierarchy are collected and their meshes are sampled together as one combined surface.
mesh	Mesh	None	Standalone mesh asset. Used as a fallback when prefab is not assigned.

Sampling

Field	Type	Default	Description
densityMode	PPGMeshSamplerDensityMode	PointsPerSquareMeter	Determines how the total point count is calculated.
pointsPerSquareMeter	float	10.0	Points placed per square metre of mesh surface area (PointsPerSquareMeter mode). Min: 0.01.
fixedPointCount	int	1000	Exact total point count, regardless of mesh size (FixedCount mode). Min: 1.
maxPoints	int	100000	Safety cap applied after the mode calculation. Min: 1.

Normals

Field	Type	Default	Description
useFaceNormals	bool	false	When enabled, uses flat per-face normals instead of interpolated vertex normals. Recommended for faceted/low-poly meshes.

Output

Field	Type	Default	Description
density	float	1.0	Density value assigned to every generated point. Range 0–1.

Density Mode Reference

Mode	Point count formula
PointsPerSquareMeter	floor(totalSurfaceArea × pointsPerSquareMeter), clamped to maxPoints.
FixedCount	fixedPointCount, clamped to maxPoints.

Notes

• All meshes (prefab children and standalone mesh) must have Read/Write enabled in their import settings. Non-readable meshes are skipped with a console warning.
• Points are area-weighted: larger triangles receive proportionally more sample points for a uniform surface density.
• When Prefab has multiple child meshes, all child transforms are baked into the prefab's root space before sampling so proportions are correct.
• Each output point's rotation is aligned to the sampled surface normal.
• Sampling runs in a Burst-compiled parallel job (PPGMeshSurfaceSampleJob).
• This node uses the graph Seed for reproducibility. The same seed always produces the same distribution.

---

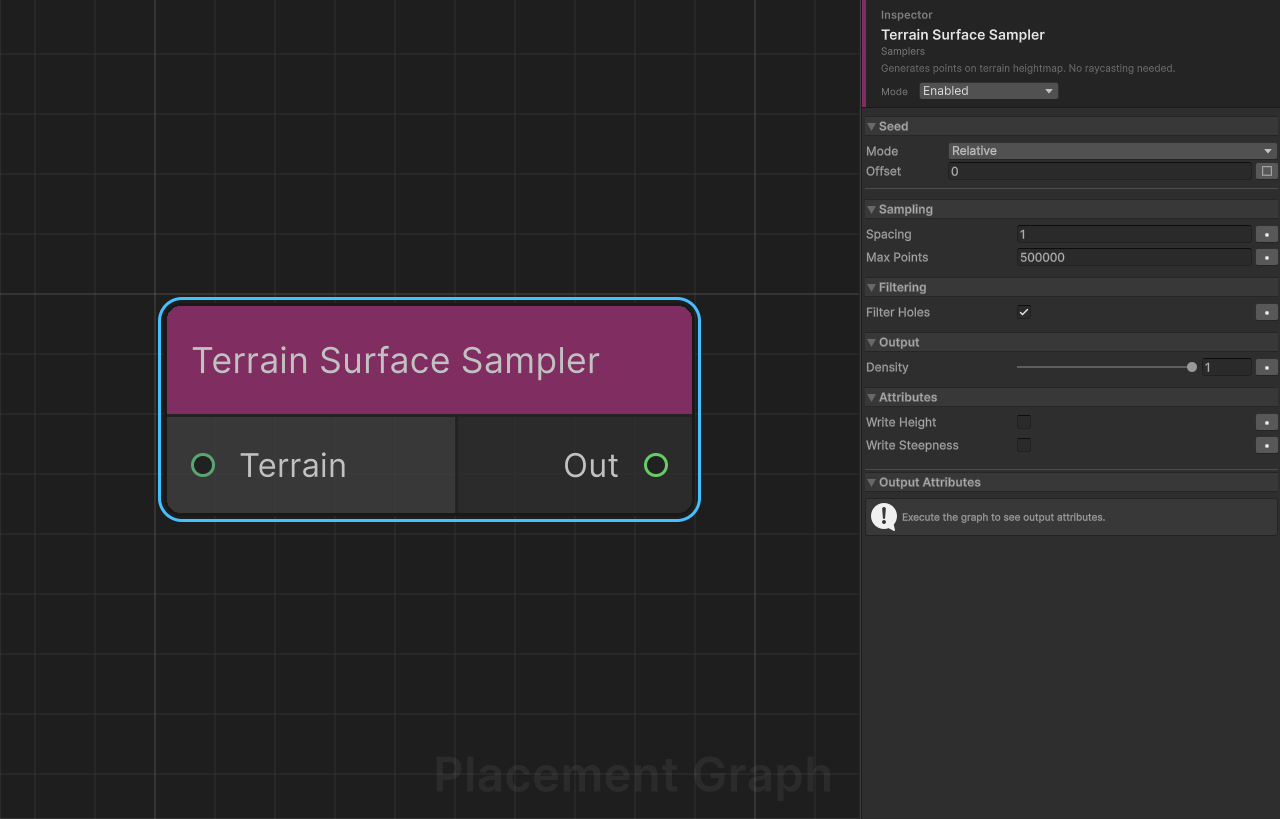

Terrain Surface Sampler

Display name: Terrain Surface Sampler
Category: Samplers
Description: Generates a grid of points directly on a Unity Terrain's heightmap surface by reading raw height data — no raycasting required. Significantly faster than Surface Sampler for large terrains.

Ports

Direction	Name	Type	Required
Input	Terrain	Surface	No
Output	Out	Point	—

Settings

Field	Type	Default	Description
spacing	float	1.0	Distance between adjacent sample points in world units. Minimum: 0.1.
maxPoints	int	500000	Safety cap on total generated points. When the computed grid exceeds this count, step sizes are scaled up automatically to fit. Min: 1.
filterHoles	bool	true	When enabled, points that fall inside terrain holes are excluded from the output.
density	float	1.0	Initial density value for all generated points. Range 0–1.

Notes

• When the Terrain port is connected, that terrain is used. When disconnected, Terrain.activeTerrain is used as a fallback; if no active terrain exists the node emits a warning and produces no output.
• Output points are generated in the terrain's world space and then converted into the PPG component's local space.
• Each point's rotation aligns to the terrain surface normal at that sample location.
• Point positions sit exactly on the terrain surface height (no Y offset or approximation).
• This node uses the graph Seed for reproducibility.
• For runtime performance, prefer this node over Surface Sampler whenever the target surface is a Unity Terrain.

---

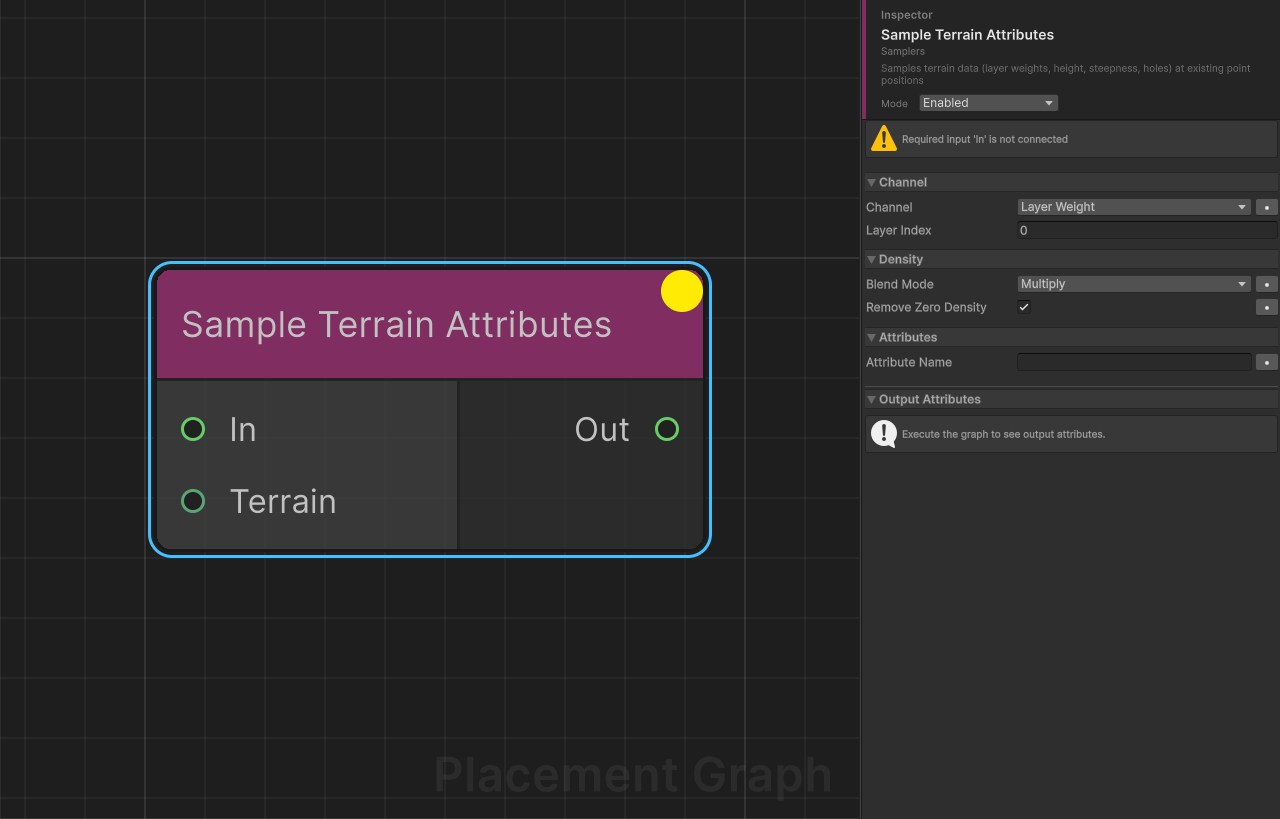

Terrain Sampler

Display name: Terrain Sampler
Category: Samplers
Description: Reads terrain data at each input point's XZ position and uses it to modify density or write metadata attributes. Supports layer paint weights, raw height, steepness, and terrain hole filtering.

Ports

Direction	Name	Type	Required
Input	In	Point	Yes
Input	Terrain	Surface	No
Output	Out	Point	—

Settings

Channel

Field	Type	Default	Description
channel	PPGTerrainChannel	LayerWeight	Which terrain data to sample. See the Channel Reference table below.
layerIndex	int	0	Zero-based index of the terrain layer to sample. LayerWeight channel only.

Density

Field	Type	Default	Description
blendMode	DensityBlendMode	Multiply	LayerWeight channel only. Replace: sets point.density = layerWeight. Multiply: sets point.density *= layerWeight.
removeZeroDensity	bool	true	When true, points whose density reaches 0 after sampling are removed from the output stream.

Attributes

Field	Type	Default	Description
writeLayerAttributes	bool	false	LayerWeight channel only. When true, writes every terrain layer's weight as a separate float metadata attribute named TerrainLayer_0, TerrainLayer_1, etc.
attributeName	string	""	Height / Steepness channels. Name of the float metadata attribute to write the sampled value into. Leave empty to skip the attribute write.

Channel Reference

Channel	Data sampled	Output effect
LayerWeight	Weight [0, 1] of layerIndex from the splatmap	Adjusts point.density via blendMode. Optionally writes all layer weights as named attributes when writeLayerAttributes is enabled.
Height	World-space Y height of the terrain surface	Writes value to the metadata attribute named attributeName. Point positions are not modified.
Steepness	Terrain steepness [0, 1] (0 = flat, 1 = vertical)	Writes value to point.steepness and to the metadata attribute named attributeName.
Hole	Whether the terrain has a hole at the point position	Removes points that fall inside holes. No density modification.

Notes

• When the Terrain port is connected, that terrain is used. When disconnected, Terrain.activeTerrain is used as a fallback.
• Layer weight sampling runs in a Burst-compiled parallel job for performance.
• The most common workflow is LayerWeight + Multiply + removeZeroDensity: points are retained only where the paint layer has weight, naturally masking placement to painted areas.
• The Hole channel acts as a hard filter — points inside holes are always removed regardless of removeZeroDensity.
• Multiple Terrain Sampler nodes can be chained: e.g. first filter by layer, then remove holes, then write height as an attribute.

Dynamically Created Attributes

When writeLayerAttributes is enabled, the node advertises the following attributes to downstream nodes at edit time:

Attribute name	Type
TerrainLayer_0	float
TerrainLayer_1	float
TerrainLayer_N	float

When attributeName is non-empty (Height or Steepness channel), the node advertises:

Attribute name	Type
(attributeName)	float

---

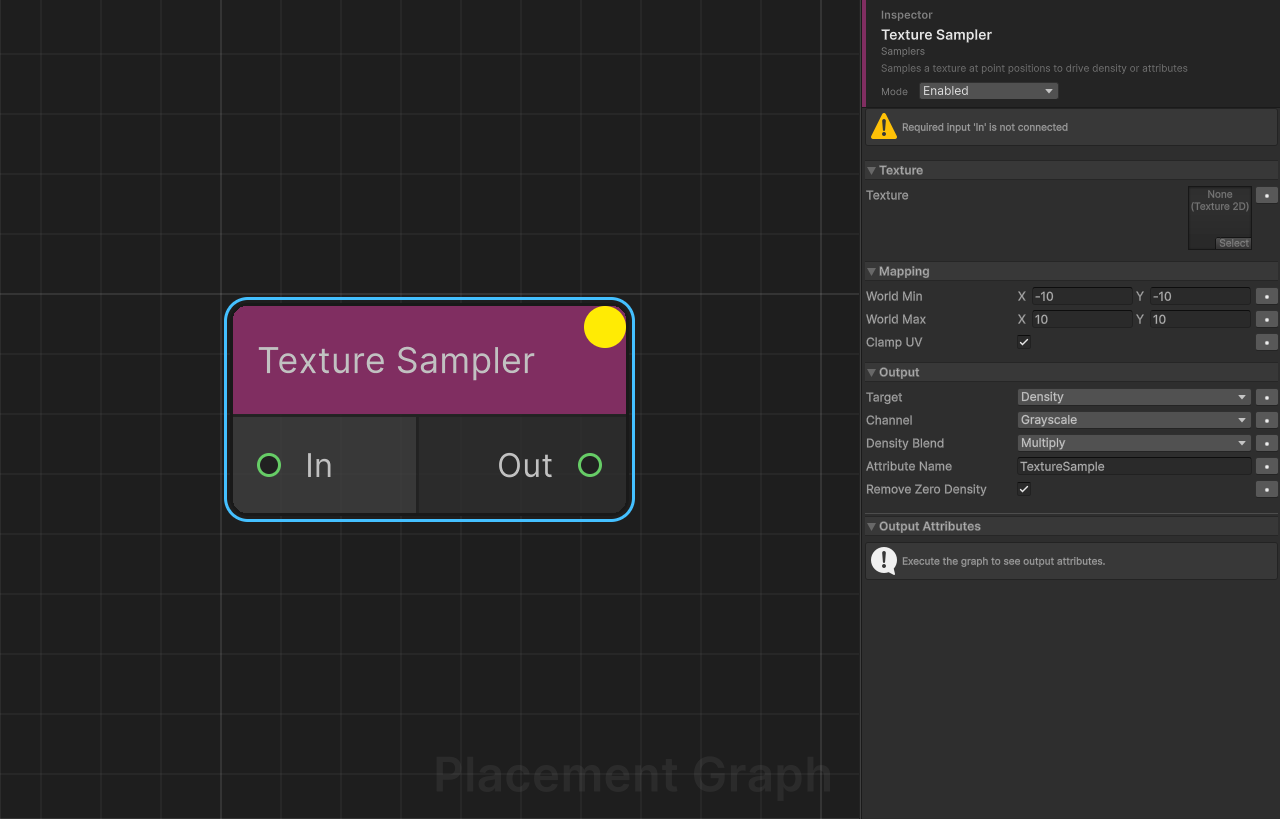

Texture Sampler

Display name: Texture Sampler
Category: Samplers
Description: Samples a Texture2D at each input point's XZ position, mapped to a world-space rectangle, and writes the result to point density, point color, or a named metadata attribute.

Ports

Direction	Name	Type	Required
Input	In	Point	Yes
Output	Out	Point	—

Settings

Texture

Field	Type	Default	Description
texture	Texture2D	None	Texture to sample. Must have Read/Write enabled in import settings.

Mapping

Field	Type	Default	Description
worldMin	Vector2	(-10, -10)	World-space XZ coordinate that maps to UV (0, 0). (Vector2.x → world X, Vector2.y → world Z.)
worldMax	Vector2	(10, 10)	World-space XZ coordinate that maps to UV (1, 1).
clampUV	bool	true	When true, UVs outside [0, 1] are clamped to the texture edge. When false, UVs tile (wrap).

Output

Field	Type	Default	Description
target	OutputTarget	Density	Destination for the sampled value. See Output Target Reference below.
channel	SampleChannel	Grayscale	Color channel to extract when Target is Density or Attribute.
densityBlend	DensityBlendMode	Multiply	Density target only. Replace: density = value. Multiply: density *= value.
attributeName	string	"TextureSample"	Metadata attribute name used when Target is Attribute.
removeZeroDensity	bool	true	Density target only. When true, points with density <= 0 after sampling are removed.

Output Target Reference

Target	Behaviour
Density	Extracts channel from the pixel and writes it to point.density using densityBlend.
Color	Writes all four RGBA channels of the pixel directly to point.color (float4). channel is ignored.
Attribute	Extracts channel from the pixel and writes it as a float to the metadata attribute named attributeName.

Sample Channel Reference

Channel	Value extracted
Red	color.r
Green	color.g
Blue	color.b
Alpha	color.a
Grayscale	Perceptual luminance (color.grayscale)

Dynamically Created Attributes

When Target is Attribute and attributeName is non-empty, the node advertises:

Attribute name	Type
(attributeName)	float

Notes

• Sampling uses nearest-neighbour pixel lookup (Texture2D.GetPixel). No bilinear filtering is applied.
• worldMin.y and worldMax.y represent the world Z axis, not the Unity Y axis.
• The texture must have Read/Write enabled; a runtime error occurs otherwise.
• Use the Color target with a gradient texture to assign per-point color data for downstream scatter nodes that support color variation.

---

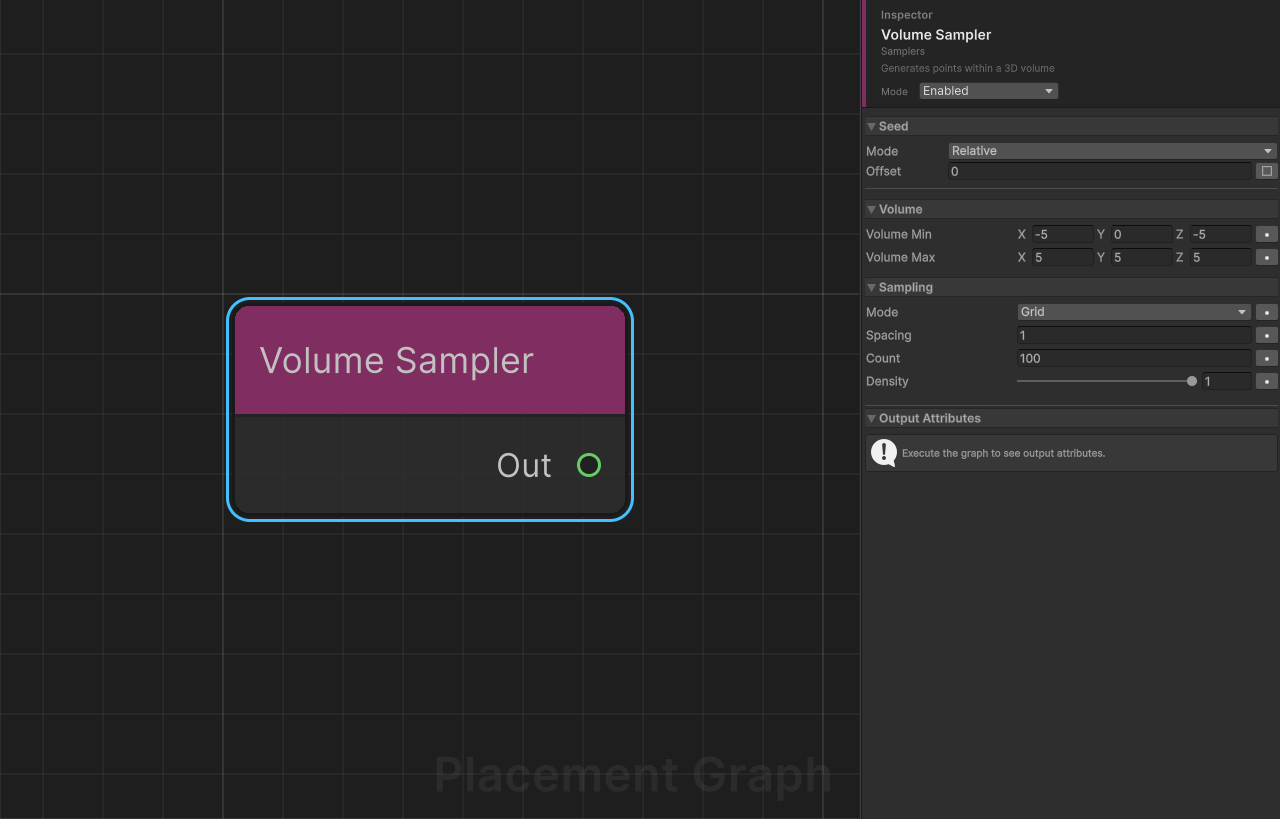

Volume Sampler

Display name: Volume Sampler
Category: Samplers
Description: Generates points within a 3D axis-aligned bounding volume using either a regular grid or a uniform random distribution. Useful for placing objects inside enclosed spaces such as caves, rooms, or volumetric effects.

Ports

Direction	Name	Type	Required
Output	Out	Point	—

Settings

Volume

Field	Type	Default	Description
volumeMin	Vector3	(-5, 0, -5)	Minimum (bottom-back-left) corner of the sampling volume.
volumeMax	Vector3	(5, 5, 5)	Maximum (top-front-right) corner of the sampling volume.

Sampling

Field	Type	Default	Description
mode	SampleMode	Grid	Grid: uniform 3D grid. Random: uniformly-distributed random points.
spacing	float	1.0	Spacing between grid points (Grid mode only). Minimum enforced: 0.01.
count	int	100	Number of random points to generate (Random mode only). Minimum: 0.
density	float	1.0	Density value assigned to every generated point. Range 0–1.

Sample Mode Reference

Mode	Behaviour
Grid	Fills the full AABB from volumeMin to volumeMax inclusive, stepping by spacing along all three axes. Point count ≈ ((vMax - vMin) / spacing + 1)³.
Random	Places exactly count points with uniformly-random positions within the AABB. Uses the graph Seed for reproducibility.

Notes

• Set volumeMin.y == volumeMax.y to generate a flat 2D distribution at a fixed height (equivalent to a horizontal plane sampler).
• Grid mode is deterministic and does not use the seed; Random mode uses the graph Seed.
• Output points are in the PPG component's local space. If the component is moved or rotated, placement adjusts automatically.
• There is no built-in maxPoints cap for Grid mode — keep spacing reasonable to avoid generating millions of points over large volumes.
